Automatic Camera Video Melting Point

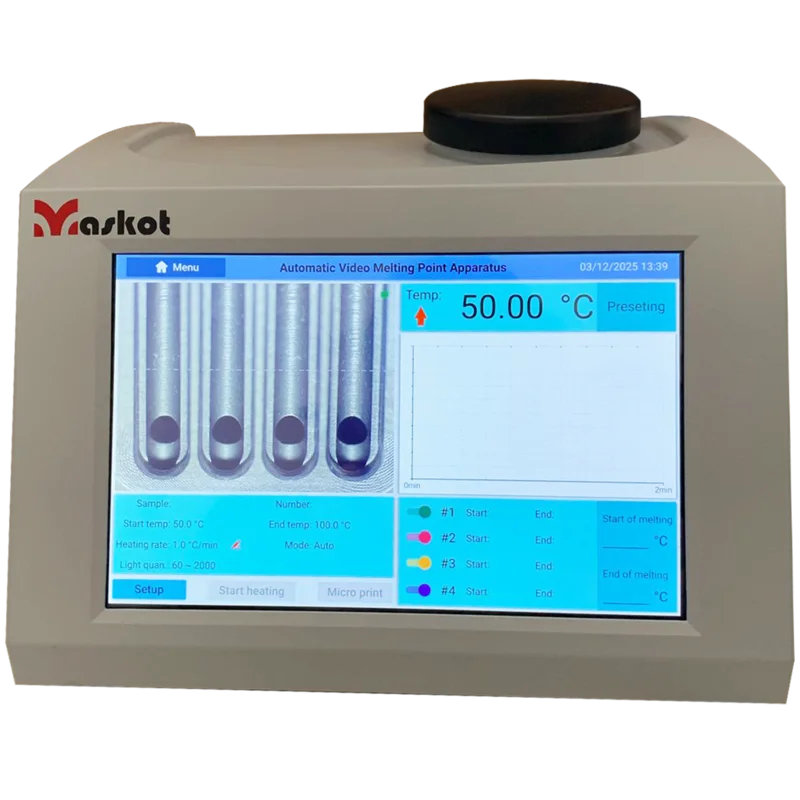

Automatic Camera Video Melting Point Apparatus

Characteristic

-          720p HD Internal Camera for clear observation and measurement.

-          It can measure 4 samples at the same time,

-          Provide video playback. Storage in USB

-          Android system with 10.1 inch touch Screen,

-          Use PID & PWM to control temprature

-          The light source brightness and detection sensivity can be adjusted to better measure dark color sampl

MODEL

SGW  685

Temp. Range

Room Temprature - 400°C

Measuring Mode

Auto/Visual (High Definition Camera, Video Capture, Playback Monitoring)

Measuring Method

200

User Management

200

Audit Trail

Yes

Electronic Signature

Yes

Minimum Digital Display

0.1°C

Linear Heating-Up Rate

0.1°C/min – 20°C/ min

Accuracy

≤200°C ±0.3°C ; >200°C ±0.5°C

Repeatability

0.3°C

Linear Heating rate error

± 10%

Number of Capilary

4

Capillary Dimension

Outer diameter ɸ 1.4 mm, inner diameter ɸ 1.0 mm,

Height  ɸ 90 mm

Height of Sample

3 mm

Operation System

Android

Data Storage

128 GB

Display

10.1 inches capacitive touch screen

Graph Storage

40000

Interface

1 x RS232, 3 X USB, 1 X RJ-45, WIFI

Power Supply

100-240 V, 50-60 Hz, 150 W

Dimension

495 x 493 x 350 mm

Gross Weight

7 Kg
