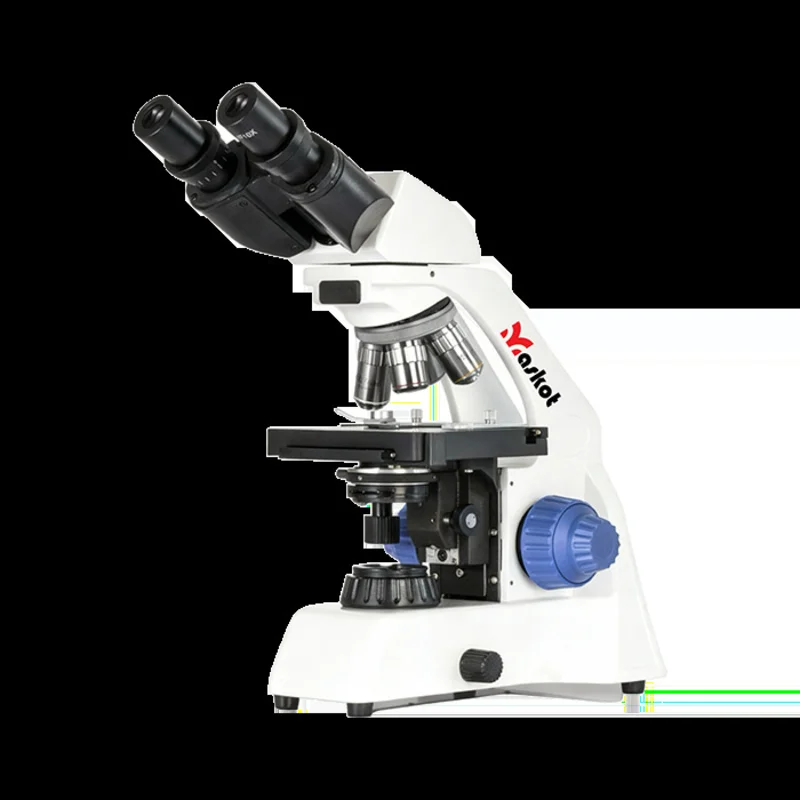

Mikroskop Binokuler MASKOT MST MB01 Binocular

Eye Lens Total 5 pcs

10x (2 pcs)

16x (2 pcs)

10x with micrometer ruler (1 pcs)

Included

Immersion oil, blue light filter and calibration slide rule micrometer objective

Objective

Chromatic aberration 4X/0.1, 10X/0.25,

40X/0.65 (spring), 100X/1.25 (spring, oil)

Refractive adjustment

±5

Focusing mechanism

Coaxial coarse and fine adjustment focusing mechanism, with limit device, fine adjustment grid value 0.002mm

Pupil distance

48mm – 75mm

Changer

Four holes (internal ball internal positioning)

Objective table

Double-layer mechanical mobile, size: 125mm × 115mm,

moving range: 75mm × 35mm

Collecting mirror

Abbe condenser N.A. 1.25, can be raised and lowered

Optical collector

LED suit

Illuminant

1W LED, adjustable brightness, external 5V power adapter or connection to a power bank

Instrument size

16.2 × 36.2 × 35.2 cm
