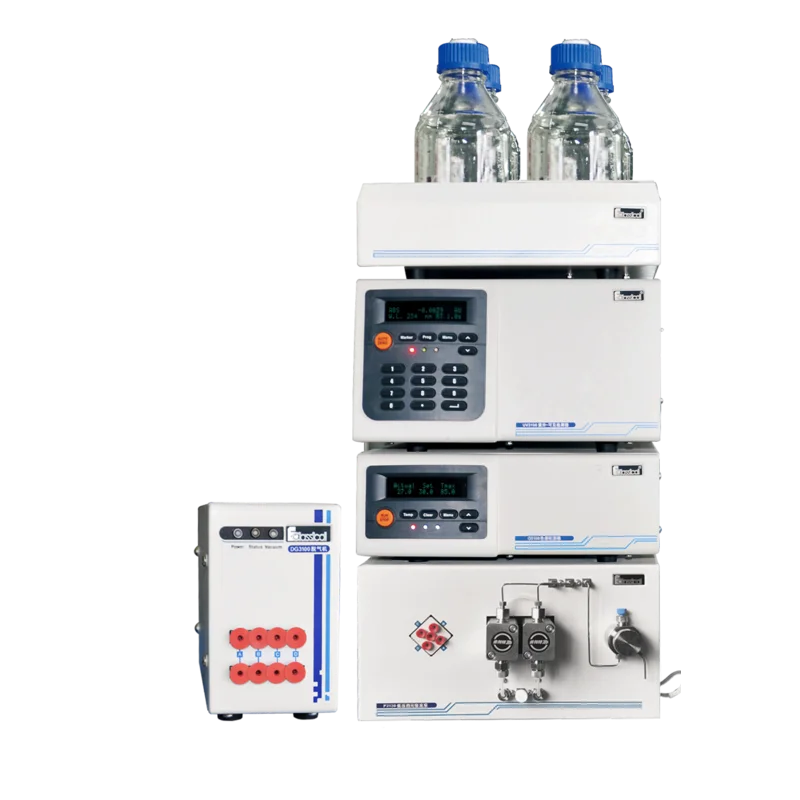

HIGH PERFORMANCE LIQUID CHROMATOGRAPHY with SOFTWARE and TRAINING

HIGH PERFORMANCE LIQUID CHROMATOGRAPHY SYSTEM dengan SOFTWARE dan TRAINING Model EClassical 3100 (Type III) Pump P3130*1 (with mixer) Detector UV3100*1 Solvent Botlle Tray TP3100*1 Sample Injector Rheodyne 7725i*1 Column Supersil ODS2 5µ ID4.6*200MM*1 Workstation Kromstation*1 Valve Mounting Frame ZJ-4*1 Degasser DG3110*1 System kit Eclassical 3100*1 Power Supply AC220V±10%, 50 Hz Gross Weight 34 Kg Model P3130 Low Pressure Quaternary Constant Flow Pump Flow Range 0.001〜10.000 mL/min (step 0.001 mL/min) Gradient Accuracy ≤±1% Retention Time Repeatability ≤0.1% Maximum Working Pressure 63 MPa Communication Methods UDP Network Communication Mixed Volume 750μL Power AC 220 V±10%, 50 Hz/100 W Dimensions/Weight 400*300*180 mm (L* W*H*)/15kg Model UV3100 UV-Vis Detector: Linear 2.0 AU Wavelength Range 190〜700 nm Noise ≤±0.5,105 AU Drift ≤1.0*104 AU/h Cell Analytical:Optical path 10 mm, 11 Μl Semi-prep scale:Optical path 2 mm, 6 μL Power AC 220V±10%, 50 Hz/100 W Dimensions/Weight 420*300*175 mm (L*W*H)/16 kg Model 03100 Column Oven Temprature Range Room Temprature±5°C-85°C Accuracy ±0.3°C Precision ≤0.1°C Power AC220 V ± 10%, 50Hz/130W Dimension / Weight 420 x 300 x 120 mm / 7Kg Alat Laboratorium Umum
